When a flasher relay malfunctions the turn signals and hazard lights might glow dimly while the flasher itself emits a buzzing sound. One is operated by a piece of wire or a bimetallic strip which expands and contracts as it is heated by the current.
Turn Signal Lights 3 Pin Led Flasher Relay Fix Installation
How does a 3 pin flasher relay work. Or blink too quickly. Pass either the common filament ground or the common filament power through it. United states europe. There are two basic types of flasher unit. The heart of the flasher is the relay. Shipping cost cannot be calculated.

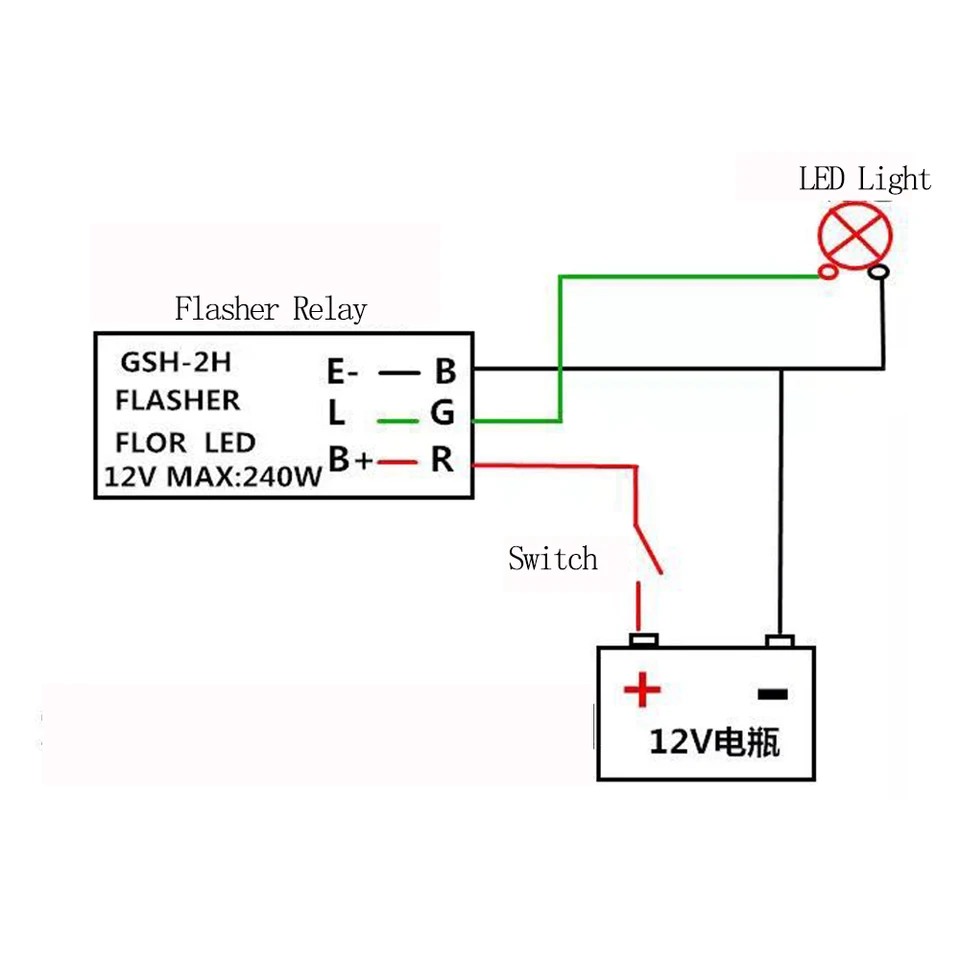

How does a three pin flasher relay work. 1 x 3 pin flasher relay. How does a three pin flasher relay work. Collection of 3 pin led flasher relay wiring diagram. A flasher relay is powered off of the automobiles 12 volt dc main. Not blink at all.
The relay is the electromechanical device that makes the operator. In this vehicle the thermal flasher is located in the fuse panel. The first type is easy to locate if it is working at all because of the clicking sound it makes. An electrical contact that conducts electricity into the wire. A wiring diagram is a simplified conventional photographic depiction of an electric circuit. Contact the seller opens in a new window or tab and request a shipping method to your location.
Silicon beach ca brconnect in series with the common power or common ground of the turn signal circuit. It is grounded positive or negative. Pulse without turning completely off. The heart of the flasher is the relay. A flasher relay is powered off of the automobiles 12 volt dc main. This item will ship to united states but the seller has not specified shipping options.
If your vehicle is exhibiting any of these symptoms testing the flasher relay is a good second step in diagnosing the problem after checking for burnt bulbs because flashers are. A bimetallic metal strip heats up when current flows and springs the contact open when it cools the contact closes again. It is grounded positive or negative. Inside the thermal flasher there are a few simple components. Autoplay when autoplay is enabled a suggested video will. It costs about 3 in the auto parts store and works reliably for years.
The other is a relay operated by a transistorised circuit. On jul 13 20 at 101505 pdt seller added the following information. A piece of gently curved spring steel to. How turn signals work. It reveals the elements of the circuit as streamlined forms and the power and also signal links between the devices. The relay is the electromechanical device that makes the operator.
This small cylindrical device is sometimes located in the fuse panel under the dashboard of the car. Please enter a valid zip code. Seller assumes all responsibility for this listing. Flasher relays control the operation of turn signals and hazard flashers on many cars and motorcycles. High quality adjustable 3 pin led electronic flasher relay 3 pin led automotive electronic flash relay car relay cf14 loading.
