The solar panels a charge controller two 6 volt golf cart batteries and a small inverter. There are a few different ways to arrange panels batteries and connectors.
Solar In A Box

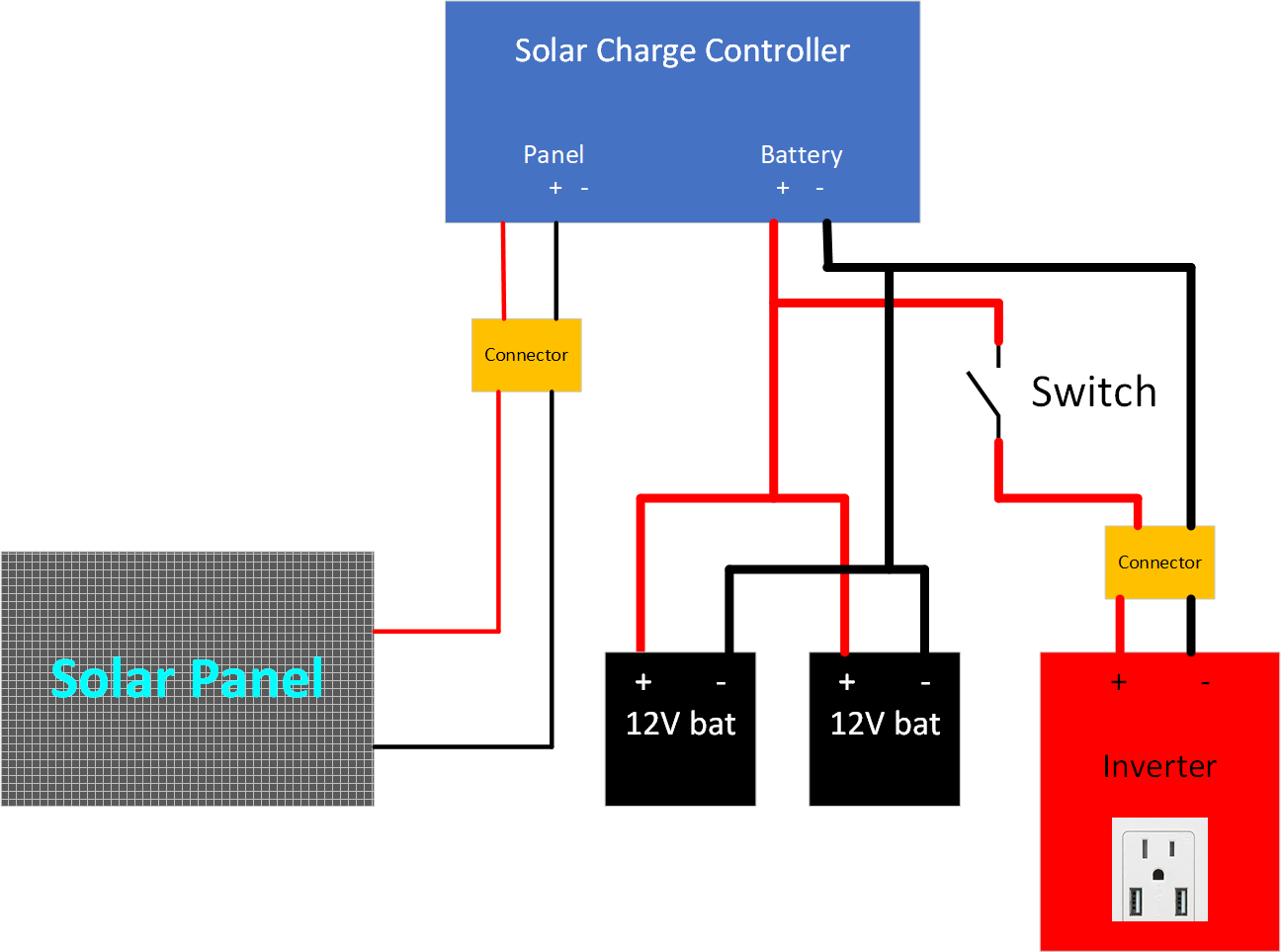

Simple solar power system diagram. These diagram examples could represent 12 24 or 48 volts systems. Of course under actual operating conditions a solar power system does not produce full output every day. Use the wiring diagrams below as a guide to putting together your diy solar panel system. Dc to ac inverter for ac power. A two panel solar system. Solar power system diagram 4 basic building blocks 1.
These diagrams are designed to be understood by a beginner for a safe and effective install with readily accessible components. Our simple home solar power system is comprised of four basic components. The cost of this complete solar system in todays pricing for the components was about 1200. These diagrams are meant to give a general idea of typical system wiring. Solar panel wiring diagrams. With a two panel solar arrangement we have a few more options in terms of wiring.
Battery bank if off grid or standalone system 4. By in essence converting the excess voltage into amps the charge voltage can be kept at an optimal level while the time required to fully charge the batteries is reduced. Usually the solar power systems use 12 volt batteries however solar panels can deliver far more voltage than is required to charge the batteries. The basic wiring configuration would be the same for any voltage system. By this i mean that we now have the choice of wiring our two panels and batteries using series. The second solar power wiring diagram arrangement well look at consists of two solar panels and a battery bank with two batteries in it.
