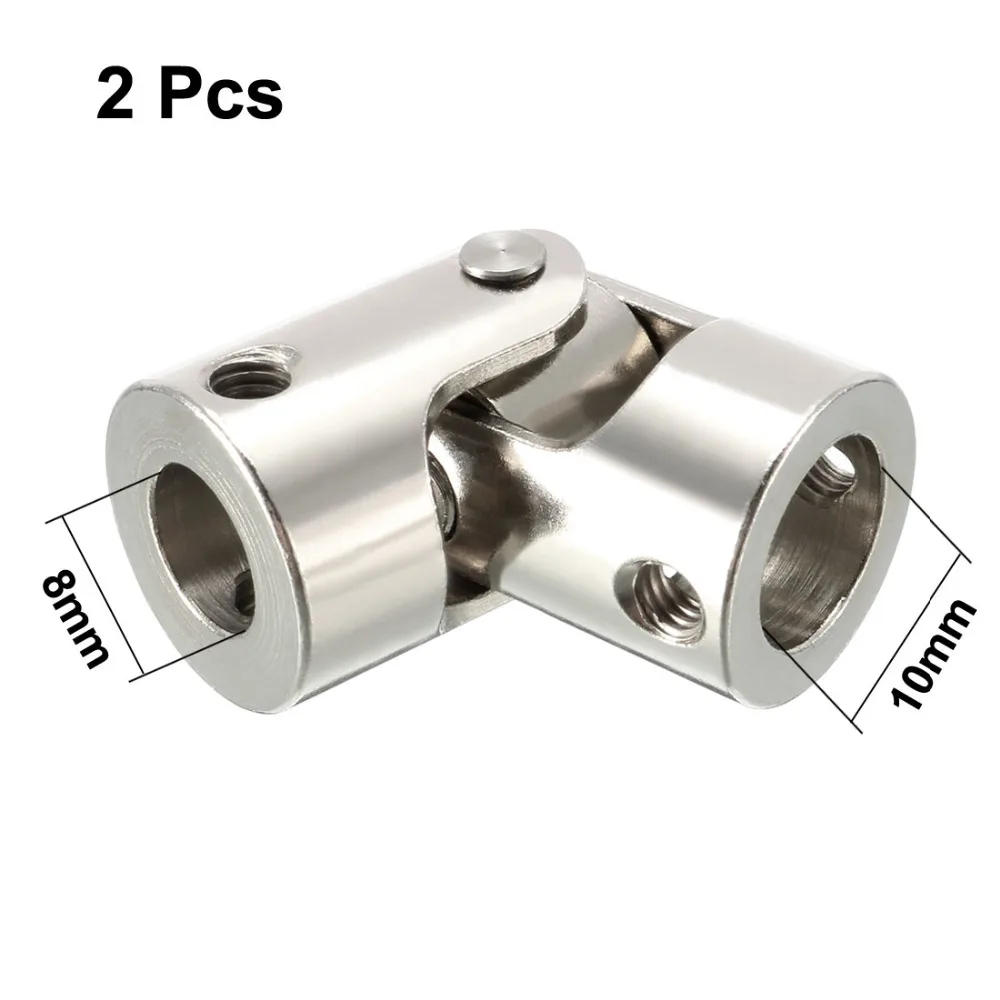

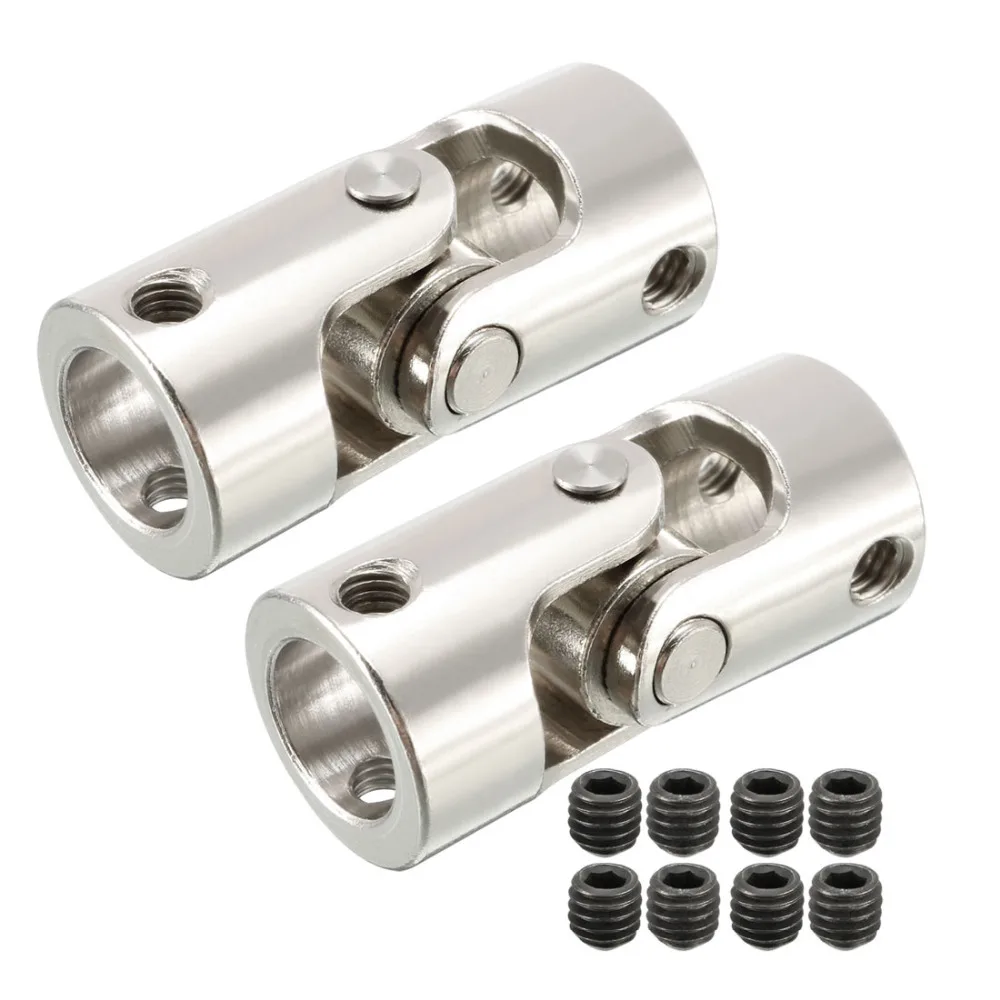

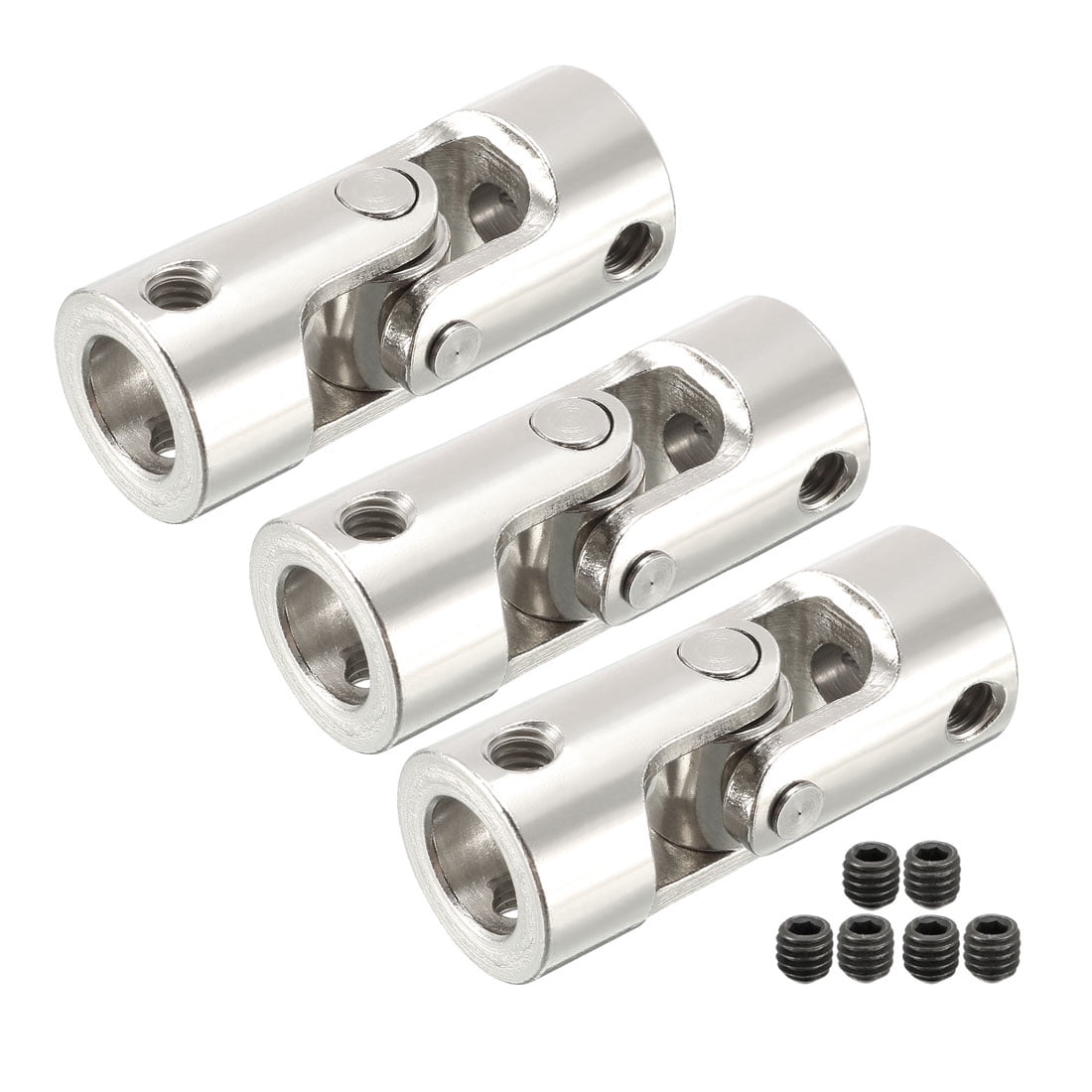

Us 11 64 10 Off Uxcell 2pcs 8mm To 10mm L35xd16 1 Section Rotatable Universal Steering For M4 Torque Transmision Alignment Shaft U Joint
Steering u joint alignment. Angles over 35 can be accommodated by using a double universal joint. If the joints are not properly phased they will operate at varying speeds throughout each revolution which can cause second order vibrations. Borgeson needle bearing universal joints are machined in our factory on state of the art cnc equipment from steel stainless steel or aluminum. If a single u joint is installed we recommended not surpassing a 35 degree angle. The biggest effect will be in your steering linkage universal joints and intermediate shafts. This will be dictated by the angle of the universal joints and the routing of the column to the steering gear.
With a column at an incorrect angle it can cause binding due to extreme angles which can turn a relatively simple two u joint system into a three or four u joint setup. The vibration can lead to increased wear and potential damage to the assembly and failure of the application. If its a relatively straight shot and your universal joint angle will be less than 30 then you can use two universal joints and one piece of shaft. Weve got steel stainless steel aluminum and chromoly steering shaft universal joints in a variety of sizes and spline counts. This can cause hard spots in steering or premature wear on the joint bearings. A second u joint is attached to the steering gear thus providing both a starting and ending point.
Determine whether you will need a two or three u joint system. Choose from flaming river ididit unisteer performance howe racing heidts detroit. Phasing is the process of aligning the universal joint yokes on both ends of the drive shaft or double u jointin a parallel fashion. If the u joint angle exceeds 35 degrees consider a double jointed u joint like pn 910 3247. Borgeson single universal joints will operate smoothly at angles up to 35. The instruction in general is to assemble everything rack and column with loose fasteners then tighten the u joint bolts first followed by tightening the steering column bottom flange bolts and then the column top cradle bolts in that order.
If your steering system requires three or more u joints start by positioning the middle u joint somewhere near the center at close to its maximum angle swiveling the components to find the fit. In extreme cases the column can be out of position and alignment with the.
